If the scale factor from figure A to figure B is k,
then the area of figure B is k^² times the area of figure A.

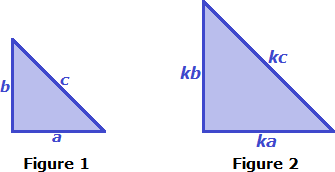

Figure 1 has side lengths: a, b, and c.
A scale factor of k has been applied to figure 1 to produce figure 2.
So, figure 2 has side lengths: k times a, k times b, and k times c.

The area of a triangle is one-half times the base times the height.
Examine the areas of both figures.

Area_{_{figure 1}}	=	$\frac{1}{2}$ ab
Area_{_{figure 2}}	=	$\frac{1}{2}$ (ka)(kb)
	=	kk( $\frac{1}{2}$ ab)
	=	k^²(Area_{_{figure 1}})

So, the area of figure 2 is k^² times the area of figure 1.

A scale drawing (or scale model) is a proportional representation of an object.

A scale drawing's scale indicates the relationship between the
representation's measurements and the actual measurements.

\begin{array}{rcl} \frac{1 in.}{14.4 ft} & = & \frac{5 in.}{x} \\ 1 in. (x) & = & 5 in. (14.4 ft) \\ 1 in. (x) & = & 72 in. ft \\ 1 in. (x) \div 1 in. & = & 72 in. ft \div 1 in. \\ x & = & 72 ft \end{array}

Area	=	base × height
	=	$\frac{5}{8}$ in. × $1 \frac{1}{4}$ in.
	=	$\frac{5}{8}$ in. × $\frac{5}{4}$ in.
	=	$\frac{25}{32}$ sq in.

The scale for area is the scale for length squared.
So, the scale for area is 1 square inch to (14.4)^² square feet, which is 1 square inch to 207.36 square feet.
To find the area in square feet, multiply

\frac{25}{32}

square inch by 207.36 sq ft/sq in.

207.36 sq ft/sq in. ×

\frac{25}{32}

sq in. = 162 sq ft
